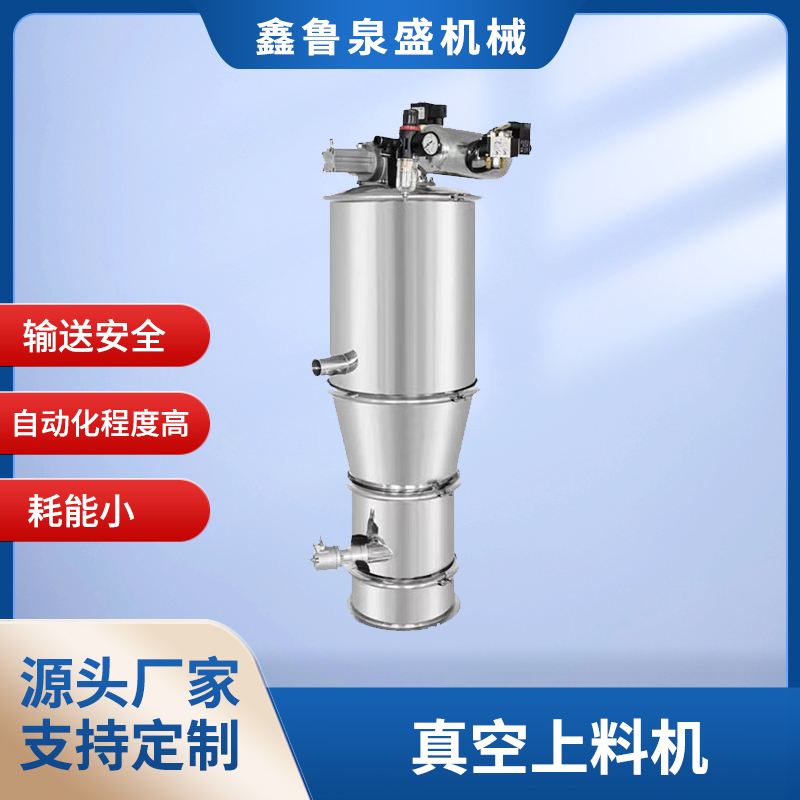

Negative pressure vacuum feeding equipment uses a vacuum generator or vacuum pump to generate vacuum, and the negative pressure generated by the vacuum sucks the material in from the feeding port. Then, in the filtration chamber of the separation container, separate the air from the material. The material automatically falls due to gravity and is collected in the silo. Our cyclone separator prevents fine powder from entering the filter to improve its efficiency. When the silo is filled with materials, the vacuum pump automatically shuts down and the pressure inside the conveying equipment reaches equilibrium. The discharge valve opens, and the material flows out through the discharge port and directly falls into the storage container. When discharging, the filter element is automatically cleaned by the back blowing airbag. If the material is relatively viscous, we can install a special vibrator to assist in cutting. The discharge chamber automatically closes after unloading, and the entire conveying process starts again.

【負壓真空上料機設備特點】：

Characteristics of negative pressure vacuum feeding machine equipment:

1.流暢的模塊化設計：模塊化設計不僅使得安裝維護更加簡單，拆洗更加方便，杜絕死角的存在。當清潔時，設備各模塊之間通過卡箍的設計，使得輸送機可被方便地拆卸和安裝。設備沒有易使物料堆積的間隙和死角。

1. Smooth modular design: Modular design not only makes installation and maintenance simpler, but also makes disassembly and cleaning more convenient, eliminating the existence of dead corners. When cleaning, the design of clamps between the various modules of the equipment allows for easy disassembly and installation of the conveyor. The equipment does not have gaps or dead corners that are prone to material accumulation.

2.流化裝置：流化器是使物料與輸送機料倉內壁之間產生一層氣模，通過這層氣膜可以有效幫助流動性差的物料流動，不僅防止物料搭橋，而且還提高了卸料效率。流化器材料為燒結式聚乙烯，符合FAD要求。

2. Fluidization device: The fluidizer creates a layer of air mold between the material and the inner wall of the conveyor silo. Through this layer of air film, it can effectively help the flow of materials with poor fluidity, not only preventing material bridging, but also improving unloading efficiency. The material of the fluidized bed is sintered polyethylene, which meets the requirements of FAD.

3.反吹系統:內置一對一的反吹氣囊，脈沖式氣體反吹，每個循環都能高效的清潔過濾器，使得設備性能更加穩定。

3. Blowback system: Equipped with one-on-one blowback airbags and pulse gas blowback, each cycle can efficiently clean the filter, making the equipment performance more stable.

4.過濾系統：高品質HD-PE型、 Ti07型過濾器，過濾精度可達0.3 μm 工作溫度130℃。德國進口，可使用酒精、清水、壓縮空氣進行清洗、可長期反復使用。

4. Filtering system: High quality HD-PE and Ti07 filters, with a filtering accuracy of up to 0.3 μ The working temperature is 130 ℃. Imported from Germany, can be cleaned with alcohol, water, and compressed air, and can be reused for a long time.

5.智能化控制系統：

5. Intelligent control system:

無論您的工況是嚴格要求的無菌車間還是普通的粉體輸送項目，無論是簡易的手動控制還是需要PLC的中心控制。我們都可以提供符合您工況要求的控制系統，方便快捷安全的完成您系統的輸送要求。

Whether your working condition is a strict aseptic workshop or a regular powder conveying project, whether it is simple manual control or central control with a PLC. We can all provide control systems that meet your operating requirements, making it convenient, fast, and safe to complete your system's conveying requirements.
